What’s in this most recent hole NASA drilled on Mars? We might know soon

The Curiosity rover continues to perform experiments, drilling more than 40 holes on Mars to us help better understand the Red Planet.
By | Published: June 28, 2024 | Last updated on July 24, 2024

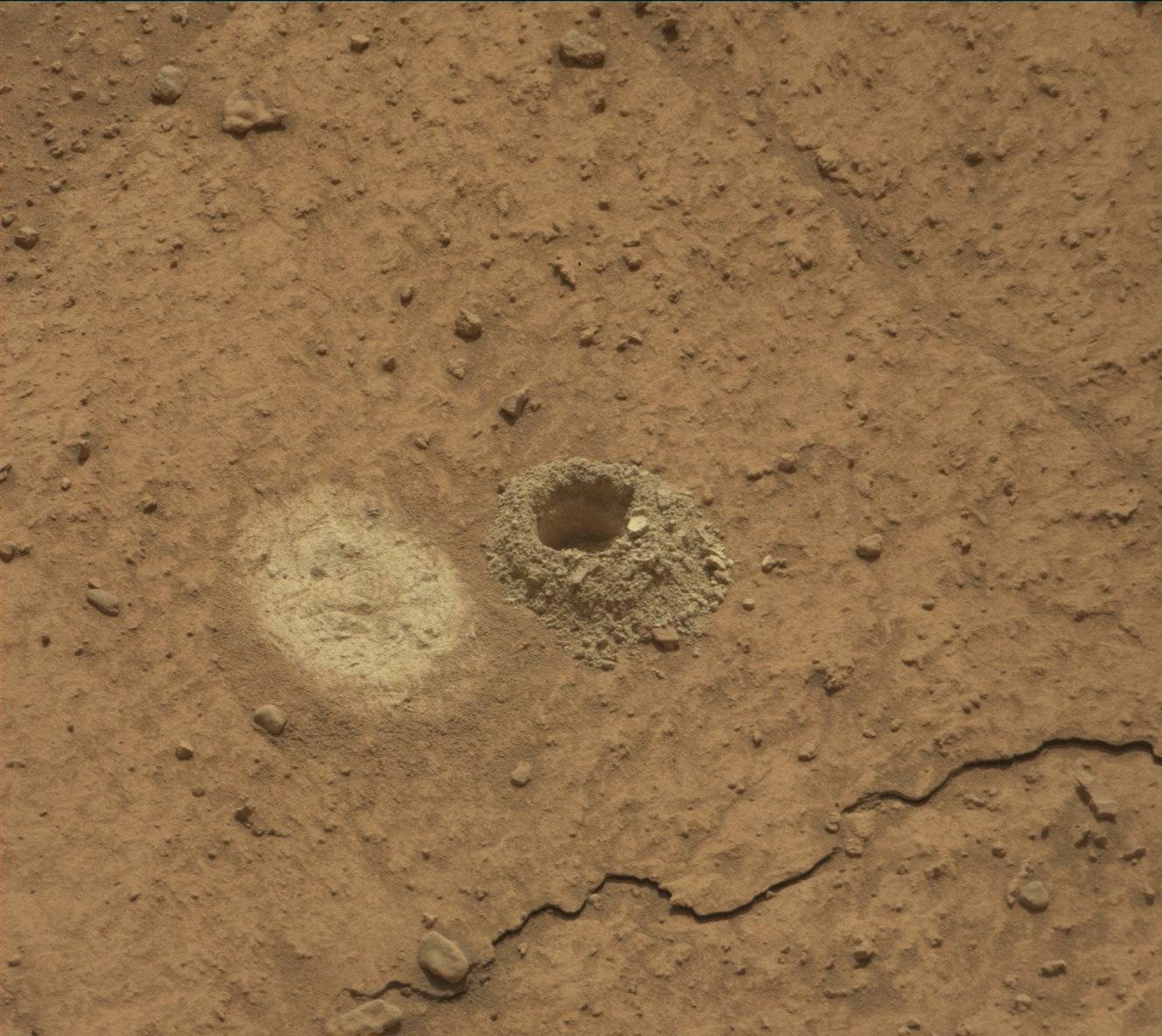

There are more than 40 holes on Mars. The drill aboard the Curiosity rover created the hole in a rock investigators call Mammoth Lakes. The bright spot to the left of the hole is where the rover smoothed a small area to collect spectroscopic data. Credit: NASA/JPL-Caltech/MSSS
The drill aboard the Curiosity rover created the hole in a rock investigators call Mammoth Lakes. The bright spot to the left of the hole is where the rover smoothed a small area to collect spectroscopic data. NASA/JPL-Caltech/MSSS
Gemini Sparkle

Key Takeaways:

  • NASA's Curiosity rover successfully drilled a 1.6 cm hole in a Martian rock named "Mammoth Lakes" on sol 4222 (June 21, 2024), following an unsuccessful initial attempt on sol 4214.
  • Post-drilling, the rover's alpha-particle X-ray spectrometer collected data after surface preparation, with a sample potentially sent to the CheMin instrument for further analysis.
  • Subsequently, the Sample Analysis at Mars (SAM) instrument suite analyzed the sample, a power-intensive process requiring careful resource management.
  • This drilling represents one of over 40 successful drilling operations conducted by Curiosity since becoming the first rover to drill on Mars in 2013, contributing to the understanding of Gale Crater's past as a water-filled lake.
Key takeaways sponsored by The Space Store

NASA’s Curiosity rover is continuing to perform experiments in Mars’ Gale Crater, even after more than 4,200 days on the martian surface. On Curiosity’s sol (the name given to a martian day) 4,214, which corresponds to June 12, 2024, the rover was given commands to drill a 0.63-inch (1.6 centimeters) hole in a rock dubbed “Mammoth Lakes.” The name comes from a town in California’s Sierra Nevada mountains.

The first thing the rover does is to conduct a pre-load test, which determines whether the drill is working and also if the chosen rock is stable enough to drill into. Unfortunately, it was not. So, the science team, after much discussion, moved the rover slightly and tried again on sol 4,222 (June 21).

As team member Alex Innanen, atmospheric scientist at York University, wrote in a NASA blog post, “All our patient waiting has been rewarded, as we were greeted with the news that our drill attempt was successful.”

But drilling the hole is only the first step. Next, the rover’s alpha-particle X-ray spectrometer must collect data. To do that, an instrument brushes and smooths the surface, and then the reading is taken. After that, the team determines whether or not a small sample of what was drilled will be delivered to the rover’s Chemistry and Mineralogy X-ray Diffraction (CheMin) instrument.

RELATED: Where did all the water on Mars go?

Finally, the investigation of the material will be done by the Sample Analysis at Mars (SAM) instrument suite. According to Innanen, that process is “quite power hungry,” but by carefully conserving power and changing the order of some of the rover’s objectives, the procedure has been done and the data has been sent back to Earth for analysis.

There are more than 40 holes drilled on Mars

Curiosity drills one of the first holes on Mars at the site named Cumberland on May 19, 2013.
Curiosity drills one of the holes on Mars at the site named Cumberland. The rover’s Front Hazard-Avoidance Camera took these images on May 19, 2013. Credit: NASA.

This line of work is one of Curiosity’s specialties — in 2013, it became the first rover to drill a hole on the Red Planet. The mission team announced its 40th successful drill hole in March 2024. Analyzing the rock powder helps scientists learn more about Gale Crater’s past, when it was a lake filled with water.
