Fermi catches thunderstorms hurling antimatter into space

Scientists think the antimatter particles formed in a terrestrial gamma-ray flash, a brief burst produced inside thunderstorms and associated with lightning.
By | Published: January 11, 2011 | Last updated on May 18, 2023

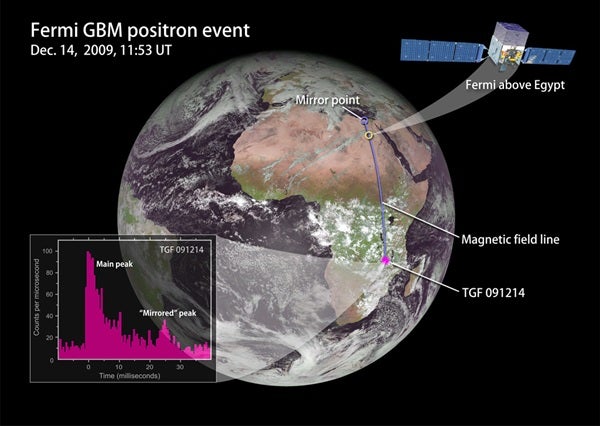

Fermi-GBM-positron-event
On December 14, 2009, while NASA’s Fermi flew over Egypt, the spacecraft intercepted a particle beam from a terrestrial gamma-ray flash (TGF) that occurred over its horizon. Fermi’s Gamma-ray Burst Monitor detected the signal of positrons annihilating on the spacecraft — not once, but twice. After passing Fermi, some of the particles reflected off of a magnetic “mirror” point and returned.
NASA’s Goddard Space Flight Center
Scientists using NASA’s Fermi Gamma-ray Space Telescope have detected beams of antimatter produced above thunderstorms on Earth, a phenomenon never seen before.

Scientists think the antimatter particles formed in a terrestrial gamma-ray flash (TGF), a brief burst produced inside thunderstorms and shown to be associated with lightning. It is estimated that about 500 TGFs occur daily worldwide, but most go undetected.

“These signals are the first direct evidence that thunderstorms make antimatter particle beams,” said Michael Briggs, a member of Fermi’s Gamma-ray Burst Monitor (GBM) team at the University of Alabama in Huntsville.

Fermi is designed to monitor gamma rays, the highest-energy form of light. When antimatter striking Fermi collides with a particle of normal matter, both particles immediately are annihilated and transformed into gamma rays. The GBM has detected gamma rays with energies of 511,000 electron volts, a signal indicating an electron has met its antimatter counterpart, a positron.

Although Fermi’s GBM is designed to observe high-energy events in the universe, it’s also providing valuable insights into this strange phenomenon. The GBM constantly monitors the entire celestial sky above and the Earth below. The GBM team has identified 130 TGFs since Fermi’s launch in 2008.

“In orbit for less than 3 years, the Fermi mission has proven to be an amazing tool to probe the universe. Now we learn that it can discover mysteries much, much closer to home,” said Ilana Harrus, Fermi program scientist at NASA Headquarters in Washington, D.C.

The spacecraft was located immediately above a thunderstorm for most of the observed TGFs, but in four cases, storms were far from Fermi. In addition, lightning-generated radio signals detected by a global monitoring network indicated the only lightning at the time was hundreds of miles away. During one TGF, which occurred December 14, 2009, Fermi was located over Egypt. But the active storm was in Zambia, some 2,800 miles (4,500 kilometers) to the south. The distant storm was below Fermi’s horizon, so any gamma rays it produced could not have been detected.

“Even though Fermi couldn’t see the storm, the spacecraft nevertheless was magnetically connected to it,” said Joseph Dwyer at the Florida Institute of Technology in Melbourne, Florida. “The TGF produced high-speed electrons and positrons, which then rode up Earth’s magnetic field to strike the spacecraft.”

The beam continued past Fermi, reached a location known as a mirror point where its motion was reversed, and then hit the spacecraft a second time just 23 milliseconds later. Each time, positrons in the beam collided with electrons in the spacecraft. The particles annihilated each other, emitting gamma rays detected by Fermi’s GBM.

Scientists long have suspected TGFs arise from the strong electric fields near the tops of thunderstorms. Under the right conditions, the field becomes strong enough that it drives an upward avalanche of electrons. Reaching speeds nearly as fast as light, the high-energy electrons give off gamma rays when air molecules deflect them. Normally, these gamma rays are detected as a TGF.

But the cascading electrons produce so many gamma rays that they blast electrons and positrons clear out of the atmosphere. This happens when the gamma-ray energy transforms into a pair of particles — an electron and a positron. It’s these particles that reach Fermi’s orbit.

The detection of positrons shows many high-energy particles are being ejected from the atmosphere. In fact, scientists now think that all TGFs emit electron/positron beams.

“The Fermi results put us a step closer to understanding how TGFs work,” said Steven Cummer from Duke University in Durham, North Carolina. “We still have to figure out what is special about these storms and the precise role lightning plays in the process.”
