Astronomers capture first images of newly discovered solar system

A team of researchers was able to see three orbiting planetary companions to HR8799 using high-contrast, near-infrared adaptive optics observations.Provided by the Lawrence Livermore National Laboratory, California
By | Published: November 13, 2008 | Last updated on May 18, 2023
New solar system
Gemini Observatory discovery image using the Altair adaptive optics system on the Gemini North telescope with the Near-Infrared Imager (NIRI). Image shows two of the three confirmed planets indicated as “b” and “c” on the image above. “b” is the ~7 Jupiter-mass planet orbiting at about 70 AU, “c” is the ~10 Jupiter-mass planet orbiting the star at about 40 AU. Due to the brightness of the central star, it has been blocked and appears blank in this image to increase visibility of the planets.
Gemini Observatory
November 13, 2008
For the first time, astronomers have taken snapshots of a multi-planet solar system, much like ours, orbiting another star.

The new solar system orbits a dusty young star named HR8799, which is 140 light-years away and about 1.5 times the size of our Sun. Three planets, roughly 10, 10, and 7 times the mass of Jupiter, orbit the star. The size of the planets decreases with distance from the parent star, much like the giant planets do in our system.

And there may be more planets out there, but scientists say they haven’t seen them yet.

“Every extrasolar planet detected so far has been a wobble on a graph. These are the first pictures of an entire system,” said Bruce Macintosh, an astrophysicist from Lawrence Livermore National Laboratory (LLNL) and one of the key authors of a paper appearing in the November 13 issue of Science Express. “We’ve been trying to image planets for eight years with no luck, and now we have pictures of three planets at once.”

The team of researchers included representatives from Livermore; the National Research Council of Canada Herzberg Institute of Astrophysics; Lowell Observatory, Flagstaff, Arizona; University of California, Los Angeles (UCLA); and several other institutions. The group used high-contrast, near-infrared adaptive optics observations with the Keck and Gemini Telescopes to capture the image.

Astronomers have known for a decade that the Sun was not the only star with orbiting planets.

“But we finally have an actual image of an entire system,” Macintosh said. “This is a milestone in the search and characterization of planetary systems around stars.” During the past 10 years, researchers have used various planet detection techniques to find more than 200 exoplanets. But these methods all have limitations. Most of them infer a planet’s existence through its influence on the star it orbits, but these methods don’t tell scientists anything about the planet other than its mass and orbit. Second, the techniques are all limited to small to moderate planet-star separation, usually less than about 5 astronomical units (one AU is the average distance from the Sun to Earth).

In the new findings, the planets are 24, 37, and 67 times the Earth-Sun separation from the host star. The farthest planet in the new system orbits just inside a disk of dusty debris, similar to that produced by the comets of the Kuiper Belt of our solar system (just beyond the orbit of Neptune at 30-50 times Earth-Sun distance).

“HR8799’s dust disk stands out as one of the most massive in orbit around any star within 300 light- years of Earth,” said UCLA’s Ben Zuckerman.

In some ways, this planetary system seems to be a scaled-up version of our solar system orbiting a larger and brighter star, Macintosch said.

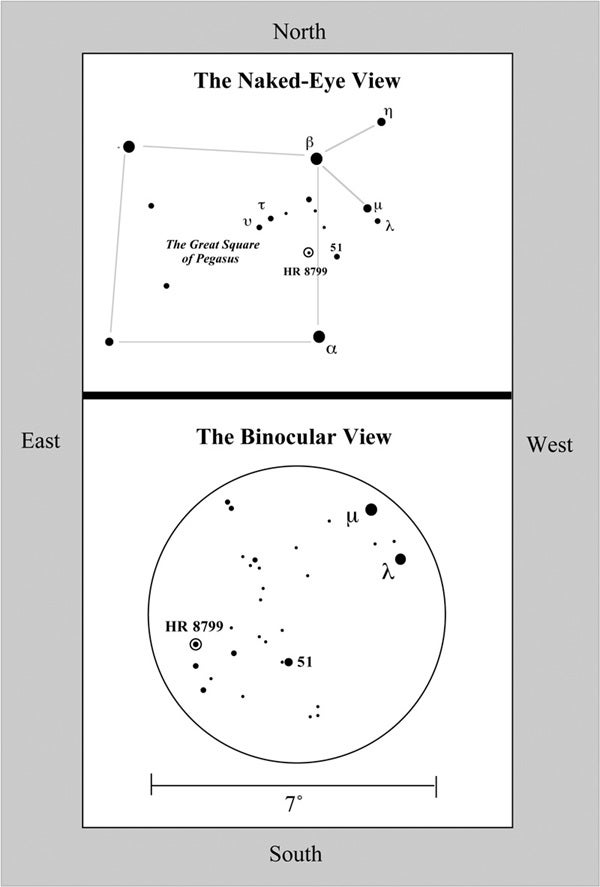

HR8799 finder chart
View of the field surrounding HR 8799.
Gemini Observatory Illustration by Stephen James O’Meara
The host star is known as a bright, blue A-type star. Ground and space-based direct-imaging surveys usually ignore these types of stars because they offer a less-favorable contrast between a bright star and a faint planet. But these stars do have an advantage over our Sun: Early in their life, they can retain heavy disks of planet-making material and therefore form more massive planets at wider separations that are easier to detect. In the recent study, the star also is young — less than 100 million years old — which means its planets still glow with heat from their formation.

“Seeing these planets directly — separating their light from the star — lets us study them as individuals and use spectroscopy to study their properties, like temperature or composition,” Macintosh said.

“Detailed comparison with theoretical model atmospheres confirms that all three planets possess complex atmospheres with dusty clouds partially trapping and re-radiating the escaping heat,” said Lowell Observatory astronomer Travis Barman.

The planets have been extensively studied using adaptive optics on the giant Keck and Gemini Telescopes on Mauna Kea, Hawaii. Adaptive optics enables astronomers to minimize the blurring effects of Earth’s atmosphere and produce images with unprecedented detail and resolution. LLNL helped build the original adaptive optics system for Keck, the world’s largest optical telescope. Christian Marois, a former LLNL postdoctoral researcher and the primary author of the paper who now works at NRC, developed an advanced computer processing technique that helps to extract the planets from the vastly brighter light of the star.

A team led by Macintosh is constructing a much more advanced adaptive optics system designed to block the light of bright stars and reveal even fainter planets. Known as the Gemini Planet Imager, this new system will be up to 100 times more sensitive than current instruments and will be able to image planets similar to our own Jupiter around nearby stars.

“I think there’s a very high probability that there are more planets in the system that we can’t detect yet,” Macintosh said. “One of the things that distinguishes this system from most of the extrasolar planets that are already known is that HR8799 has its giant planets in the outer parts — like our solar system does — and so has ‘room’ for smaller terrestrial planets — far beyond our current ability to see — in the inner parts.”
