Phoenix lander to peek under a rock

Mission scientists will ask the Mars' lander to do a maneuver outside its repertoire. The payoff: unique insight into the Red Planet's icy layer beneath its surface.Provided by the Jet Propulsion Laboratory, Pasadena, California
By | Published: September 23, 2008 | Last updated on May 18, 2023

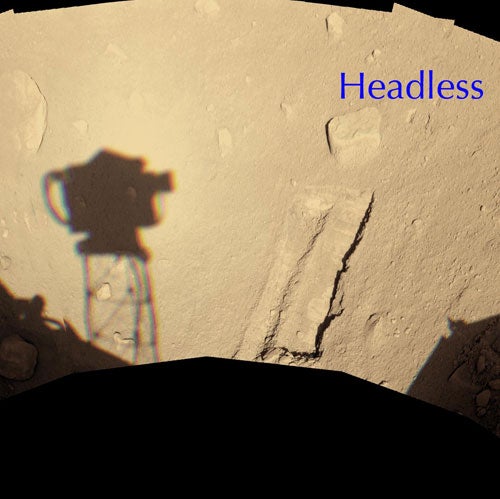

Mars Phoenix lander Headless rock
NASA’s Phoenix Mars Lander team selected a rock informally named “Headless” for an attempt to slide it aside with the lander’s robotic arm. Moving rocks is not among the many tasks the arm was designed to do, but if the maneuver can be accomplished, scientists on the Phoenix team hope to check whether the depth to a subsurface ice layer is any different underneath the area where the rock now sits.
NASA/JPL-Caltech/University of Arizona/Texas A&M University
If the robotic arm on NASA’s Phoenix Mars Lander can nudge a rock aside September 23, scientists on the Phoenix team would like to see what’s underneath.

Engineers who develop commands for the robotic arm have prepared a plan to try displacing a rock on the north side of the lander. This rock, roughly the size and shape of a VHS videotape, is informally named “Headless.”

“We don’t know whether we can do this until we try,” said Ashitey Trebi Ollennu, a robotics engineer at NASA’s Jet Propulsion Laboratory, Pasadena, California. “The idea is to move the rock with minimum disturbance to the surface beneath it. You have to get under it enough to lift it as you push it and it doesn’t just slip off the scoop.”

The lander receives commands for the whole day in the morning, so there’s no way to adjust in mid-move if the rock starts slipping. Phoenix took stereo-pair images of Headless to provide a detailed three-dimensional map of it for planning the arm’s motions. On September 20, the arm enlarged a trench close to Headless. Commands sent to Phoenix the evening of September 21 included a sequence of arm motions for the September 23 operation, intended to slide the rock into the trench.

Moving rocks is not among the many tasks Phoenix’s robotic arm was designed to do. If the technique works, the move would expose enough area for digging into the soil that had been beneath Headless.

“The appeal of studying what’s underneath is so strong we have to give this a try,” said Michael Mellon, a Phoenix science team member at the University of Colorado, Boulder.

The scientific motive is related to a hard, icy layer found beneath the surface in trenches that the robotic arm has dug near the lander. Excavating down to that hard layer underneath a rock might provide clues about processes affecting the ice.

“The rocks are darker than the material around them, and they hold heat,” Mellon said. “In theory, the ice table should deflect downward under each rock. If we checked and saw this deflection, that would be evidence the ice is probably in equilibrium with the water vapor in the atmosphere.”

An alternative possibility, if the icy layer were found closer to the surface under a rock, could by the rock collecting moisture from the atmosphere, with the moisture becoming part of the icy layer.
