New steep-terrain rover tested

Axel, a future robotic spacecraft, will be better able to explore and investigate foreign worlds.Provided by the Jet Propulsion Laboratory, Pasadena, California
By | Published: February 5, 2009 | Last updated on May 18, 2023
Axel

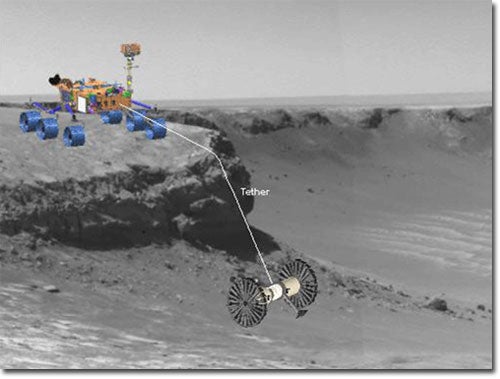

Axel concept as a tethered marsupial rover for steep terrain access.
NASA/JPL-Caltech
February 5, 2009
Engineers from NASA’s Jet Propulsion Laboratory (JPL) and students at the California Institute of Technology have designed and tested a versatile, low-mass robot that can rappel off cliffs, travel nimbly over steep and rocky terrain, and explore deep craters.

This prototype rover, called Axel, might help future robotic spacecraft better explore and investigate foreign worlds such as Mars. On Earth, Axel might assist in search-and-rescue operations.

A Web video showing an Axel test-run at the JPL Mars yard is online. Click here to view.

“Axel extends our ability to explore terrains that we haven’t been able to explore in the past, such as deep craters with vertically-sloped promontories,” said Axel’s principal investigator, Issa A.D. Nesnas, of JPL’s robotics and mobility section. “Also, because Axel is relatively low-mass, a mission may carry a number of Axel rovers. That would give us the opportunity to be more aggressive with the terrain we would explore, while keeping the overall risk manageable.”

The simple and elegant design of Axel, which can operate both upside down and right-side up, uses only three motors – one to control each of its two wheels and a third to control a lever. The lever contains a scoop to gather lunar or planetary material for scientists to study, and it also adjusts the robot’s two stereo cameras, which can tilt 360°.

Axel’s cylindrical body has computing and wireless communications capabilities and an inertial sensor to operate autonomously. It also sports a tether that Axel can unreel to descend from a larger lander, rover, or anchor point. The rover can use different wheel types, from large foldable wheels to inflatable ones, which help the rover tolerate a hard landing and handle rocky terrain.

Nesnas co-leads the project with Joel Burdick, a mechanical and bioengineering professor at Caltech, who supervises a handful of Caltech graduate and undergraduate students working on the rover system. Last fall, the JPL-Caltech team demonstrated Axel at the annual Smithsonian Folklife Festival in Washington.

“Collaboration with Caltech has been key to the success of this project,” Nesnas said. “The students contributed significantly to the design of the tethered Axel. Their creative work enabled us to analyze, design, and build new wheels, sampling tools, and software. The students also played a key role in field-testing this robot.”
