NASA tests lunar rovers and oxygen production technology

These new technologies could teach astronauts how to make oxygen from lunar rocks.Provided by NASA Headquarters, Washington, D.C.
By | Published: November 14, 2008 | Last updated on May 18, 2023
moon rover

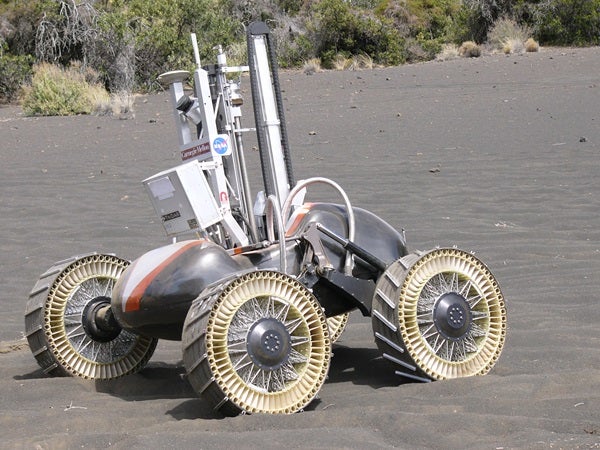

A prototype drilling rover built by Carnegie Mellon University carries RESOLVE, a small scale soil to oxygen conversion system. Its lunar wheels were developed by Michelin.
November 14, 2008
NASA has concluded nearly 2 weeks of testing equipment and lunar rover concepts on Hawaii’s volcanic soil. The agency’s In Situ Resource Utilization Project, which studies ways astronauts can use resources found at landing sites, demonstrated how people might prospect for resources on the Moon and make their own oxygen from lunar rocks and soil.

The tests helped NASA gain valuable information about systems that could enable a sustainable and affordable lunar outpost by minimizing the amount of water and oxygen that must be transported from Earth. The Pacific International Space Center for Exploration Systems, known as PISCES and based at the University of Hawaii, Hilo, hosted the trials. Research teams and NASA experts held the tests of several NASA-developed systems in Hawaii because its volcanic soil is similar to regolith, the Moon’s soil.

NASA’s lunar-exploration plan currently projects that on-site lunar resources could generate 1 to 2 metric tons of oxygen annually. This is roughly the amount of oxygen that four to six people living at a lunar outpost might breathe in a year. The field demonstrations in Hawaii showed how lunar materials might be extracted. It also showcased the hydrogen-reduction system used to manufacture oxygen from those materials and how astronauts would store the oxygen. These experiments help engineers and scientists spot complications that might not be obvious in laboratories.

A prototype system combines a polar prospecting rover and a drill designed to penetrate the harsh lunar soil. The rover’s system demonstrates small-scale oxygen production from regolith. A similar rover could search for water ice and volatile gases such as hydrogen, helium, and nitrogen, in the permanently shadowed craters of the Moon’s poles. Carnegie Mellon University of Pittsburgh built the rover that carries equipment known as the Regolith and Environment Science and Oxygen and Lunar Volatile Extraction.

moon rover

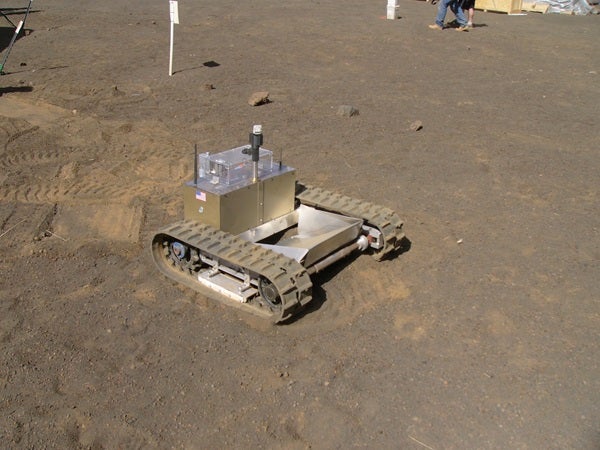

The Cratos rover will deliver lunar regolith to systems that can extract oxygen and other gases from soil. The prototype rover underwent field tests for 2 weeks in Hawaii.
Larger, complementary systems that might produce oxygen from soil on an outpost-sized scale are known as ROxygen and the Precursor ISRU Lunar Oxygen Testbed (PILOT).

Cratos, a NASA-developed robotic excavator, collected soil for the ROxygen system. Also tested was an excavator Lockheed Martin of Denver developed that uses a bucket drum to collect and deliver soil to PILOT.

Other tested concepts include a new lunar wheel, developed by Michelin North America of Greenville, South Carolina; a lunar sample coring drill, developed for NASA by the Northern Centre for Advanced Technology in Canada; and a night vision camera called TriDAR for the rover’s navigation and drill site selection. Neptec in Canada developed the camera with support from CSA.

Additional instruments that were field tested will be used to improve understanding of minerals found on the Moon. They include a Mossbauer spectrometer from NASA’s Johnson Space Center in Houston and the University of Mainz in Germany; an X-ray diffraction unit called mini CheMIN from NASA’s Ames Research Center at Moffett Field, California, and the Los Alamos National Laboratory in New Mexico; and a handheld Raman spectrometer CSA provided.

CSA also provided a utility support vehicle from Ontario Drive Gear for personnel and hardware transportation on site as well as to evaluate mobility attributes for future human and project-related lunar mobility platforms. Representatives of the German Space Agency demonstrated an autonomous mole drill technology developed for Mars exploration that might be used in future lunar robotic missions.

In addition to tests in laboratories and rock yards, NASA conducts tests at sites around the world known as analogs because they simulate the moonscape and other extreme environments. These analog activities take place in remote field locations where NASA can evaluate the interactions of multiple mission systems relating to mobility, infrastructure, and effectiveness in harsh climates. Hawaii’s volcanic terrain, rock distribution and soil materials provide a high-quality simulation of the Moon’s polar region. Early demonstrations provide valuable information for subsequent hardware and mission concept development.
