NASA tests engine technology for lunar landing

Data from these tests will allow engineers to develop simulation models that can focus testing for efficiency and effectiveness.Provided by NASA Headquarters, Washington, D.C.
By | Published: January 14, 2009 | Last updated on May 18, 2023
Common Extensible Cryogenic Engine

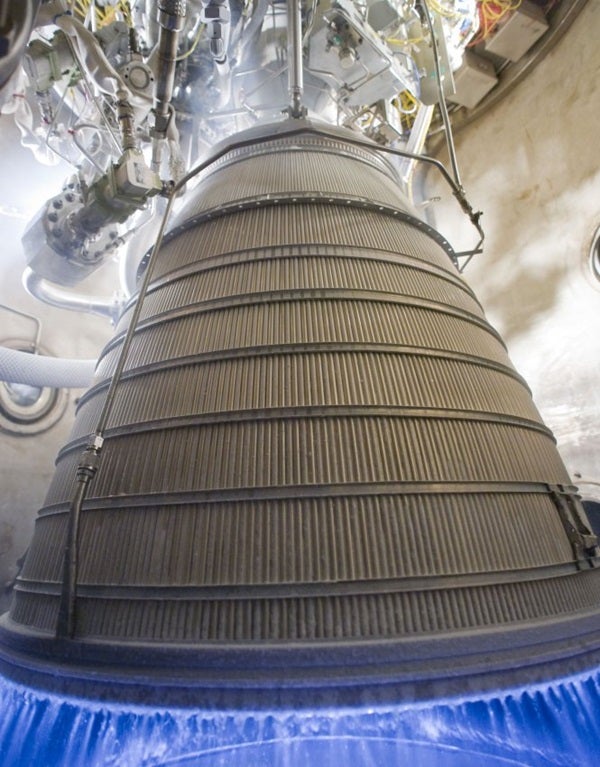

The Common Extensible Cryogenic Engine, CECE for short, based on the design of the heritage Pratt & Whitney Rocketdyne RL10 engine, has completed its third round of intensive testing. CECE is a step forward in NASA’s efforts to develop reliable, robust technologies to return to the moon — and a winter wonder.
Pratt & Whitney Rocketdyne
January 9, 2009
A technology development engine that may help NASA safely return astronauts to the lunar surface has successfully completed its third round of testing. The goal of these tests is to reduce risk and advance technology for a reliable and robust rocket engine that could enable America’s next Moon landing.

The tests by Pratt & Whitney Rocketdyne in West Palm Beach, Florida, helped gather data on this concept engine that might play a role in the next stage of human exploration of the Moon. Most rockets make spacecraft travel faster. The goal of a lunar lander descent engine is to slow the vehicle so astronauts can land safely.

The Common Extensible Cryogenic Engine (CECE) is a deep-throttling engine, which means it has the flexibility to reduce thrust from 100 percent down to 10 percent – allowing a spacecraft to gently land on the lunar surface. The 13,800-pound thrust engine uses extremely cold liquid oxygen and liquid hydrogen as propellants.

During the test, the engine was successfully throttled from a high of a 104 percent of the engine’s potential down to eight percent, a record for an engine of this type. A cryogenic engine is needed to provide high performance and put more payload on the surface of the Moon. The CECE demonstrator has evaluated two engine configurations during three rounds of hot-fire testing.

“The first test series in 2006 was a challenge but showed promise,” said Tony Kim, Deep Throttling Engine project manager at NASA’s Marshall Space Flight Center, in Huntsville, Alabama. “Testing in 2007 provided an in-depth examination of low-power-level throttling and engine performance characteristics. This third cycle we actively addressed and found solutions to the challenges we faced.”

The team carefully assessed test results that showed pressure oscillations in the engine at lower throttle levels called “chugging.” Chugging may not be a concern for the engine itself, but the resulting vibrations could have the potential to resonate with the structure of the rocket and cause problems for the lander or crew.

Injector and propellant feed system modifications successfully eliminated engine chugging by controlling liquid hydrogen and liquid oxygen flow to the combustion chamber. The latest engine configuration incorporates a new injector design and propellant feed system that carefully manages the pressure, temperature, and flow of propellants.

“The technology developed from this effort will help engineers successfully design future cryogenic engines to meet the throttling requirements of the Constellation Program’s Altair lunar lander,” Kim said.

The CECE is based on the existing Pratt & Whitney Rocketdyne RL10 upper stage rocket engine. Previous first-hand flight experience, as well as this data, will allow engineers to develop simulation models that can focus testing for efficiency and effectiveness.
