James Webb Telescope mirrors chill out

Engineers will measure mirrors' structural stability to ensure their performance in the extreme temperatures of space.Provided by Goddard Space Flight Center, Greenbelt, Maryland
By | Published: December 11, 2008 | Last updated on May 18, 2023
JWST illustration

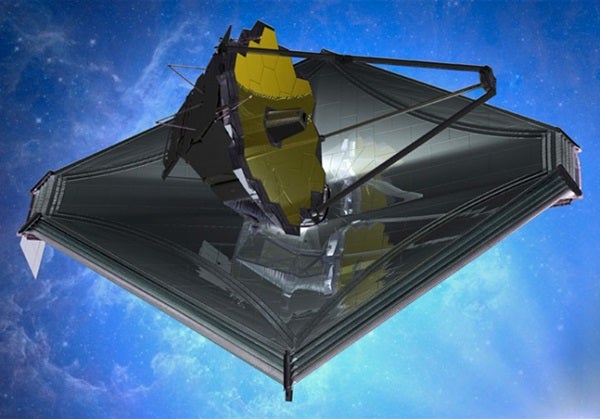

Artist’s rendition of the James Webb Space Telescope.
December 11, 2008
The first of 18 mirror segments that will fly on NASA’s James Webb Space Telescope arrived this week at the Marshall Space Flight Center, Huntsville, Alabama, to begin preparations to meet the extreme temperatures it will encounter in space.

The X-ray & Cryogenic Facility (XRCF) at the Marshall Center is the world’s largest X-ray telescope test site and a unique, cryogenic, clean room optical test center. Cryogenic testing will take place in a 7,600 cubic foot helium-cooled vacuum chamber, chilling the Webb flight mirror from room temperature to frigid -414° Fahrenheit (-248° Celsius). While the mirrors change temperature, test engineers will measure their structural stability to ensure they will perform as designed once they are operating in space.

“Optical measurements of the 18 mirror segments at cold temperatures will be made and used to create mirrors that will focus crisply in space,” said Helen Cole, project manager for Webb Telescope mirror activities at XRCF. “This will allow us to see new wonders in our universe.”

NASA’s James Webb Space Telescope is a large, infrared-optimized space telescope that will be the premier observatory of the next decade. It will study every phase in the history of our universe, ranging from the first luminous glows after the Big Bang, to the formation of solar systems capable of supporting life on planets like Earth, to the evolution of our own solar system. Its instruments will work primarily in the infrared range of the electromagnetic spectrum, with some capability in the visible range.

JWST primary mirror

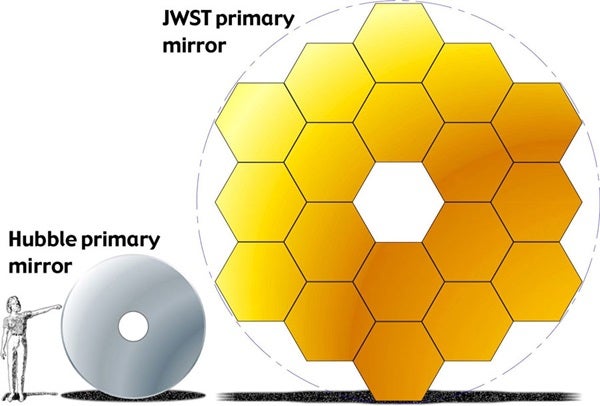

This drawing compares the sizes of the Hubble Space Telescope and James Webb Space Telescope primary mirrors.
The Webb Telescope will have a large mirror, 21.3 feet (6.5 meters) in diameter, made up of 18 segments about 4.9 feet (1.5 meters) in size. The telescope’s home in space will be about 1 million miles (1,609,344 kilometers) from Earth. The completed primary mirror will be more than 2.5 times larger than the diameter of the Hubble Space Telescope’s primary mirror, which is 7.8 feet (2.4 meters), but will weigh roughly half as much, because it is made of beryllium, one of the lightest applicable metals known to man.

The amount of detail a space telescope can see is directly related to the size of the mirror area that collects light from the universe. A larger area collects more light and can see deeper into space and at a much higher resolution than a smaller mirror. That’s why the telescope’s primary mirror is made up of 18 mirror segments that form a total area of almost 30 square yards (25 square meters) when they all come together.

What’s unique about Webb’s large primary mirror is that each of the 18 mirrors will have the ability to be moved individually, so that they can be aligned together to act as a single large mirror. Scientists and engineers can also correct for imperfections after the telescope opens in space, or if any changes occur in the mirror during the life of the mission. Precision testing, like this test cycle in XRCF, provides detailed measurements to fabricate and deliver a high-resolution mirror.

“Beginning today, we kick off exclusive testing of the James Webb Space Telescope mirrors which will run though 2011. Our one-of-a-kind facility can provide the environment which allows us to optically measure infinitesimally small changes in the mirrors as they cool,” said Jeff Kegley, XRCF testing manager.
