Scientists chart high-precision map of Milky Way’s magnetic fields

The unique all-sky map gives scientists the ability to measure the magnetic field structure of the Milky Way in unparalleled detail.
By | Published: February 7, 2012 | Last updated on May 18, 2023

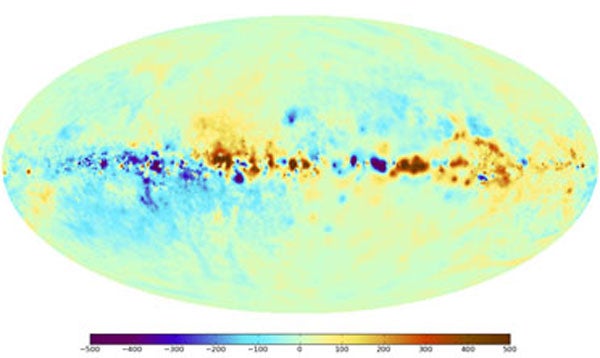

The sky map of the Faraday effect caused by the magnetic fields of the Milky Way. Red and blue colors indicate regions of the sky where the magnetic field points toward and away from the observer, respectively. The band of the Milky Way (the plane of the galactic disk) extends horizontally in this panoramic view. The center of the Milky Way lies in the middle of the image. The north celestial pole is at the top left and the south pole is at the bottom right. Max Planck Institute for Astrophysics
Scientists at the Naval Research Laboratory (NRL) in Washington, D.C., are part of an international team that has pooled their radio observations into a database, producing the highest-precision map to date of the magnetic field within our Milky Way Galaxy.

The team, led by the Max Planck Institute for Astrophysics (MPA) in Garching, Germany, used the database they created and were able to apply information theory techniques to produce the map, said Tracy Clarke from NRL. “The key to applying these new techniques is that this project brings together over 30 researchers with 26 different projects and more than 41,000 measurements across the sky. The resulting database is equivalent to peppering the entire sky with sources separated by an angular distance of two Full Moons.” This incredible volume of data results in a new, unique all-sky map that gives scientists the ability to measure the magnetic field structure of the Milky Way in unparalleled detail.

The map shows scientists a quantity known as Faraday depth, a concept which depends on magnetic fields along a specific line of sight. The research team created the map by combining more than 41,000 individual measurements using a unique image reconstruction technique. The researchers at MPA are specialists in the new discipline of information field theory. Tracy Clarke, working in NRL’s Remote Sensing Division, is part of the team of international radio astronomers who provided the radio observations for the database. The new, high-precision map not only shows the galactic magnetic field’s structure on large scales, but also reveals small-scale features that help scientists better understand turbulence in the galactic gas.

The Milky Way, along with all other galaxies, possesses magnetic fields. Until now, scientists have been puzzled over the origin of these galactic magnetic fields. The assumption was that magnetic fields were created by processes where mechanical energy is converted into magnetic energy. These same kinds of processes occur in the interior of the Earth and Sun. The map that the team has created will give scientists valuable knowledge about the structure of galactic magnetic fields throughout the Milky Way.

For 150 years, scientists have measured cosmic magnetic fields by observing the Faraday effect. They know that when polarized light passes though a magnetized medium, the plane of polarization turns. This concept is called Faraday rotation. The strength and direction of the magnetic field governs the amount of rotation that occurs. So scientists observe the rotation to investigate the magnetic fields’ properties.

Radio astronomers study polarized light from distant radio sources passing through the Milky Way on the way to Earth in order to measure our galaxy’s magnetic field. By measuring the polarization of the light sources at different frequencies, researchers can determine the amount of Faraday rotation.

With these individual measurements, researchers gain data about only a single path through the galaxy. To gain a fuller picture of the Milky Way’s magnetic fields from the Faraday rotation measurements, researchers have to observe many sources across the sky. To achieve this map, radio astronomers from around the world have pooled data from 26 different projects, collecting a total of 41,330 individual measurements. The map contains approximately one radio source per square degree of sky.

Despite this large catalog of data, there are still some large areas, especially in the southern sky, where only a few measurements have been recorded. So to gain a realistic map of the entire sky, researchers have to interpolate between the existing data points that they do have recorded.

There are some difficulties in obtaining the map data this way. First, the accuracy of the various measurements varies greatly, although the more-exact measurements should have the greatest influence. However, scientists are not certain exactly how reliable any single measurement is in providing dependable information about the environment around it; therefore, more-accurate measurements are not always given the highest priority.

There is also the problem of the uncertainty of the measurements simply because the process for obtaining the measurements is highly complex. A seemingly small error can impact the data in a significant way, leading to a distorted map.

To address these problems, the MPA scientists developed an algorithm used to reconstruct the images. This algorithm, called the “extended critical filter,” uses tools provided by the new discipline known as information field theory. Information field theory, which uses logical and statistical methods applied to fields, is an effective tool for dealing with erroneous information. Besides astronomy, these tools can be used in fields such as medicine or geography for a range of image and signal-processing applications.

While the new map is particularly important for studying our galaxy, researchers will also be able to use it for future studies for extragalactic magnetic fields. This is possible because the scientists will use the new map to help them account for the galactic contribution to observed Faraday rotation. In the near future, astronomers are looking toward a new generation of radio telescopes, such as LOFAR, eVLA, ASKAP, MeerKAT, and the SKA, that will provide an abundance of measurements of the Faraday effect. With this new data, researchers will be able to provide updates to the image of the Faraday sky, and perhaps someday understand the origin of the galactic magnetic fields.
