Rosetta reveals comet’s water-ice cycle

Underground water vapor reaches the comet’s cold surface and freezes again, blanketing that patch of surface with a thin layer of fresh ice.
By | Published: September 24, 2015 | Last updated on May 18, 2023

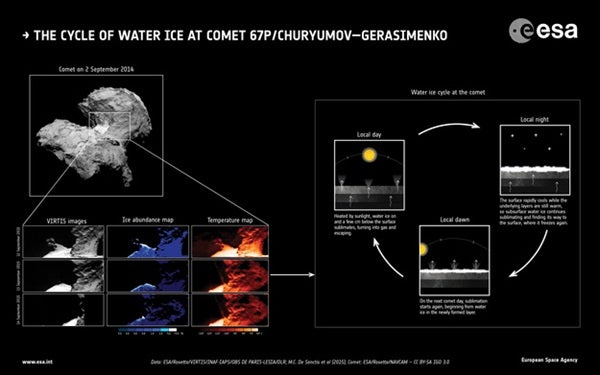

Water-ice cycle of comet
The water-ice cycle of Rosetta’s comet.
Data: ESA/Rosetta/VIRTIS/INAF-IAPS/OBS DE PARIS-LESIA/DLR; M.C. De Sanctis et al (2015); Comet: ESA/Rosetta/NavCam – CC BY-SA IGO 3.0
Comets are celestial bodies comprising a mixture of dust and ices, which they periodically shed as they swing towards their closest point to the Sun along their highly eccentric orbits.

As sunlight heats the frozen nucleus of a comet, the ice in it — mainly water but also other ‘volatiles’ such as carbon monoxide and carbon dioxide — turns directly into a gas.

This gas flows away from the comet, carrying dust particles along. Together, gas and dust build up the bright halo and tails that are characteristic of comets.

Rosetta arrived at Comet 67P/Churyumov-Gerasimenko in August 2014 and has been studying it up close for over a year. On August 13, 2015, the comet reached the closest point to the Sun along its 6.5-year orbit, and it is now moving back towards the outer solar system.

A key feature that Rosetta’s scientists are investigating is the way in which activity on the comet and the associated outgassing are driven by monitoring the increasing activity on and around the comet since Rosetta’s arrival.

Scientists using Rosetta’s Visible, InfraRed and Thermal Imaging Spectrometer (VIRTIS) have identified a region on the comet’s surface where water-ice appears and disappears in sync with its rotation period.

“We found a mechanism that replenishes the surface of the comet with fresh ice at every rotation: this keeps the comet ‘alive,’” said Maria Cristina De Sanctis from INAF-IAPS in Rome, Italy.

The team studied a set of data taken in September 2014, concentrating on a one square kilometer region on the comet’s neck. At the time, the comet was about 500 million km from the Sun and the neck was one of the most active areas.

As the comet rotates, taking just over 12 hours to complete a full revolution, the various regions undergo different illumination.

“We saw the telltale signature of water ice in the spectra of the study region but only when certain portions were cast in shadow,” said De Sanctis.

“Conversely, when the Sun was shining on these regions, the ice was gone. This indicates a cyclical behavior of water ice during each comet rotation.”

The data suggest that water ice on and a few centimeters below the surface ‘sublimates’ when illuminated by sunlight, turning it into gas that then flows away from the comet. Then, as the comet rotates and the same region falls into darkness, the surface rapidly cools again.

However, the underlying layers remain warm owing to the sunlight they received in the previous hours, and, as a result, subsurface water ice keeps sublimating and finding its way to the surface through the comet’s porous interior.

But as soon as this ‘underground’ water vapor reaches the cold surface, it freezes again, blanketing that patch of comet surface with a thin layer of fresh ice.

Eventually, as the Sun rises again over this part of the surface on the next comet day, the molecules in the newly formed ice layer are the first to sublimate and flow away from the comet, restarting the cycle.

“We suspected such a water ice cycle might be at play at comets, on the basis of theoretical models and previous observations of other comets, but now, thanks to Rosetta’s extensive monitoring at 67P/Churyumov-Gerasimenko, we finally have observational proof,” said Fabrizio Capaccioni from INAF-IAPS.

From these data, it is possible to estimate the relative abundance of water ice with respect to other material. Down to a few centimeters deep over the region of the portion of the comet nucleus that was surveyed, water ice accounts for 10–15 percent of the material and appears to be well mixed with the other constituents.

The scientists also calculated how much water vapor was being emitted by the patch that they analyzed with VIRTIS and showed that this accounted for about 3 percent of the total amount of water vapor coming out from the whole comet at the same time, as measured by Rosetta’s MIRO microwave sensor.

“It is possible that many patches across the surface were undergoing the same diurnal cycle, thus providing additional contributions to the overall outgassing of the comet,” said Capaccioni.

The scientists are now busy analyzing VIRTIS data collected in the following months as the comet’s activity increased around the closest approach to the Sun.

“These initial results give us a glimpse of what is happening underneath the surface in the comet’s interior” said Matt Taylor from the European Space Agency.

“Rosetta is capable of tracking changes on the comet over short as well as longer time scales, and we are looking forward to combining all of this information to understand the evolution of this and other comets.”
