Light is a familiar form of energy, and yet some of its properties are all but hidden to everyday human experience. One of these — polarization — carries a wealth of information about what happened along a light ray’s path and can be exploited by astronomers.
Light can be described as a series of waves of electric and magnetic fields that vibrate in directions that are at right angles to each other and to their direction of travel.
Usually, these fields can vibrate at all orientations. However, if they happen to vibrate preferentially in certain directions, we say the light is “polarized.” This can happen, for example, when light bounces off a reflective surface like a mirror or the sea. Special filters can be used to absorb this polarized light, which is how polarized sunglasses eliminate glare.
In space, the light emitted by stars, gas, and dust also can be polarized in various ways. By measuring the amount of polarization in this light, astronomers can study the physical processes that caused the polarization.
In particular, polarization may reveal the existence and properties of magnetic fields in the medium light has traveled through.

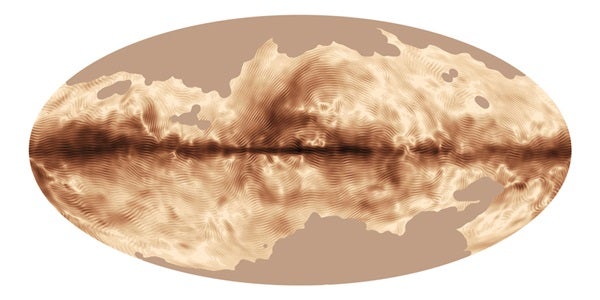

The map presented here was obtained using detectors on Planck that acted as the astronomical equivalent of polarized sunglasses. Swirls, loops, and arches in this new image trace the structure of the magnetic field in our home galaxy, the Milky Way.
In addition to its hundreds of billions of stars, our galaxy is filled with a mixture of gas and dust, the raw material from which stars are born. Even though the tiny dust grains are very cold, they do emit light but at long wavelengths — from the infrared to the microwave domain. If the grains are not symmetrical, more of that light comes out vibrating parallel to the longest axis of the grain, making the light polarized.
If the orientations of a whole cloud of dust grains were random, no net polarization would be seen. However, cosmic dust grains are almost always spinning rapidly, tens of millions of times per second, due to collisions with photons and rapidly moving atoms.
Then, because interstellar clouds in the Milky Way are threaded by magnetic fields, the spinning dust grains become aligned preferentially with their long axis perpendicular to the direction of the magnetic field. As a result, there is a net polarization in the emitted light, which can then be measured.
In this way, astronomers can use polarized light from dust grains to study the structure of the galactic magnetic field and, in particular, the orientation of the field lines projected on the plane of the sky.
In the new Planck image, darker regions correspond to stronger polarized emission, and the striations indicate the direction of the magnetic field projected on the plane of the sky. Since the magnetic field of the Milky Way has a 3-D structure, the net orientation is difficult to interpret if the field lines are highly disorganized along the line of sight, like looking through a tangled ball of string and trying to perceive some net alignment.
However, the Planck image shows that there is large-scale organization in some parts of the galactic magnetic field.
The dark band running horizontally across the center corresponds to the galactic plane. Here, the polarization reveals a regular pattern on large angular scales, which is due to the magnetic field lines being predominantly parallel to the plane of the Milky Way.
The data also reveal variations of the polarization direction within nearby clouds of gas and dust. This can be seen in the tangled features above and below the plane, where the local magnetic field is particularly disorganized.
Planck’s galactic polarization data are analyzed in a series of four papers, but studying the magnetic field of the Milky Way is not the only reason why Planck scientists are interested in these data. Hidden behind the foreground emission from our galaxy is the primordial signal from the cosmic microwave background (CMB), the most ancient light in the universe.
Planck already has mapped the brightness of the CMB in unprecedented detail, and scientists are now scrutinizing the data to measure the polarization of this light. This is one of the main goals of the Planck mission because it could provide evidence for gravitational waves generated in the universe immediately after its birth.
In March 2014, scientists from the BICEP2 collaboration claimed the first detection of such a signal in data collected using a ground-based telescope observing a patch of the sky at a single microwave frequency. Critically, the claim relies on the assumption that foreground polarized emissions are almost negligible in this region.
Later this year, scientists from the Planck collaboration will release data based on Planck’s observations of polarized light covering the entire sky at seven different frequencies. The multiple-frequency data should allow astronomers to separate with great confidence any possible foreground contamination from the tenuous primordial polarized signal.
This will enable a much more detailed investigation of the early history of the cosmos, from the accelerated expansion when the universe was much less than one second old to the period when the first stars were born, several hundred million years later.
