Phoenix mission research points to martian climate cycles

The lander experienced a move from summer to winter on Mars, gaining an unprecedented look at the planet's changing weather patterns, including frost and snow.Provided by the University of Arizona, Tucson
By | Published: July 2, 2009 | Last updated on May 18, 2023

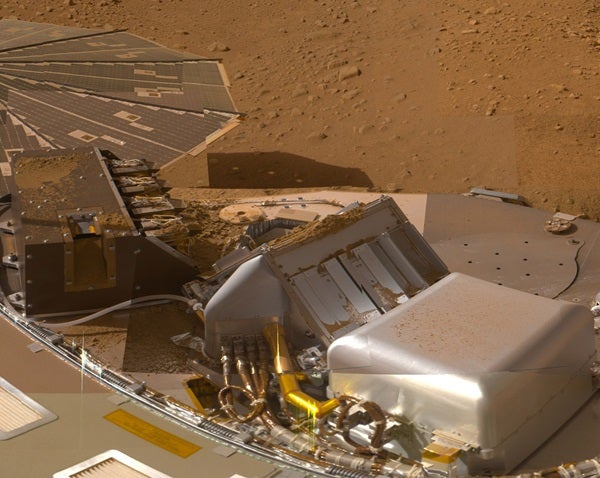

Phoenix Mars Lander deck
This mosaic of images from the Surface Stereo Imager camera on NASA’s Phoenix Mars Lander shows a portion of the spacecraft’s deck after deliveries of several martian soil samples to instruments on the deck.
NASA/JPL-Caltech/University of Arizona/Texas A&M University
July 2, 2009
Four papers in the journal Science this week offer new details about the history of water on Mars, gleaned from the 2008 NASA Phoenix Mars Mission operated by the University of Arizona.

Peter H. Smith, a scientist with the university’s Lunar and Planetary Laboratory and the mission’s principal investigator, is the first author of “H2O at the Phoenix Landing Site” in Science. Smith and his group of scientists and students used the lander to investigate the role of water and ice on Mars, as well as the changing weather patterns.

The popular mission launched in early August 2007. In May 2008, it made its way to the martian surface, with its landing trajectory captured by the HiRISE camera onboard the Mars Reconnaissance Orbiter.

For the next 5 months, the University of Arizona’s Science Operations Center clattered with researchers gearing themselves to follow the martian diurnal phases, which are about 40 minutes longer than day and night on Earth and enough to throw off human sleep schedules in short order.

The landing site was an ejecta field. A comet or asteroid that crashed into the surface melted the ice below, which created a sheet of dust and water that flowed across a shallow valley. Smith said that event also covered any large rocks that could have interfered with the ability of the Phoenix to safely land.

Smith and his group found patterns in the ground near the lander, multisided shapes about 10 to 33 feet (3 to 10 meters) in size. The shapes are created when the surface contracts and the ice cracks. Sand fills in the cracks before the ice expands and buckles the surface to make the distinctive patterns.

Smith used the Phoenix Lander’s robotic arm to dig a series of trenches to expose subsurface ice and found that the ice in the centers of the polygons was fairly shallow, only a couple of inches deep.

“But in the troughs in between, we went down as much as 8 inches and never did find the ice underneath,” Smith said. “We weren’t able to dig further down because the robot arm was hitting against the side of the lander. It was not known ahead of time that there would be changes in the depth of the ice.

“We wanted to know the origin of the ice,” Smith continued. “It could have been the remnant of a larger polar ice cap that shrank; could have been a frozen ocean; could have been a snowfall frozen into the ground.

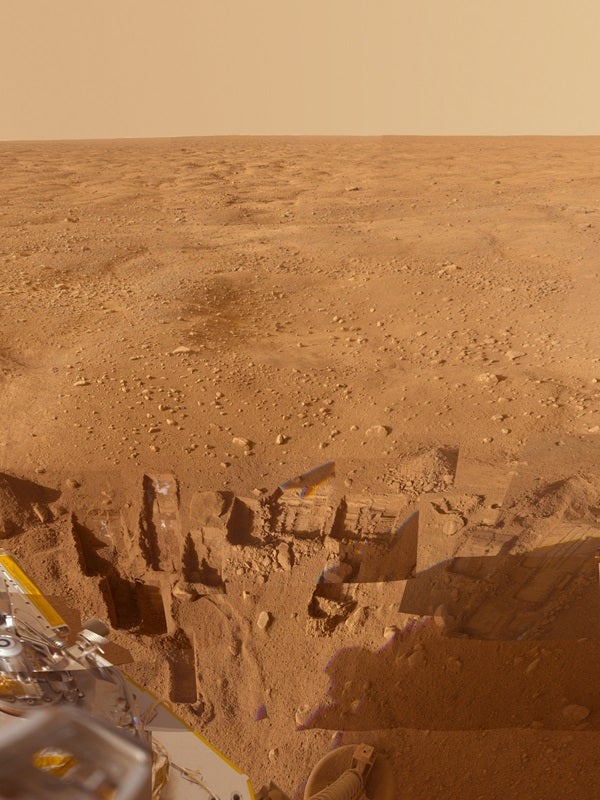

Phoenix Mars Lander trenches
This mosaic of images from the Surface Stereo Imager camera on NASA’s Phoenix Mars Lander shows several trenches dug by Phoenix, plus a corner of the spacecraft’s deck and the Martian arctic plain stretching to the horizon.

The footpad at the bottom center is about 3 feet (1 meter) below the spacecraft deck seen at the lower left. Overlaid images show trenches dug to either nearly pure water ice or ice-cemented soil. Analyses of samples taken from these trenches give clues to the history of the region.

NASA/JPL-Caltech/University of Arizona/Texas A&M University
“The most likely theory is that water vapor from the atmosphere slowly diffused into the surface and froze at the level where the temperature matches the frost point. We expected that was probably the source of the ice, but some of what we found was surprising,” Smith said.

One of the surprises was finding perchlorate.

“Perchlorate was not predicted at this landing site, and nobody had it on their list of likely chemicals,” Smith said. “There was a very high concentration of it, higher than the salts we might have expected like sodium chloride [table salt]. As an oxidized state of chlorine, it has interesting properties including a strong affinity for water. On Earth, microbes use it as a chemical energy source.”

During the mission, Mars moved from summer to winter, giving Smith and others an unprecedented look at the planet’s changing weather patterns, including frost and snow.

“Frost was predicted, but snowfall was quite a welcome surprise,” Smith said. “In summer there was a lot of dust in the atmosphere. As we neared fall, the dust cleared, and all of a sudden there were water ice clouds forming at about 4 km [2.5 miles] above the surface. We could see the clouds scud by, moving through the camera field, and once we saw snow coming out of the bottom of a cloud. It was very exciting to watch the daily weather changes. No one has ever had this experience.”

Smith said there are clues that thin films of water modified the soil chemistry. Unlike Earth, Mars has an unstable spin axis, which currently is tilted at about 25° from vertical. Perhaps 5 millions years ago, he said, it was tilted much more, which would have exposed the north pole to larger amounts of sunlight and created warmer, wetter conditions during summer.

“During that previous climate, you would expect huge increase in the amounts of water vapor coming off the polar cap,” Smith said. “If the cap goes unstable, you can have as much as 300 times as much water in the atmosphere.”

It would have been enough for snowdrifts. On hot summer days, melting snow could have formed thin films of water.

Not enough for a lake or a river, but he said this could have been a time when damp soil provided a growth period for any microbes that learned to survive those long periods of dryness.

“Who knows? Evolution is a powerful force. If life ever started on Mars, there are niches where still it could survive.”
