Meet the Magellanic Clouds: Our galaxy’s brightest satellites

One large and one small, the Magellanic Clouds are familiar sights in the southern sky — and they can teach us a great deal about the Milky Way.
By | Published: November 20, 2020 | Last updated on May 18, 2023

ASYTG1120_01RE

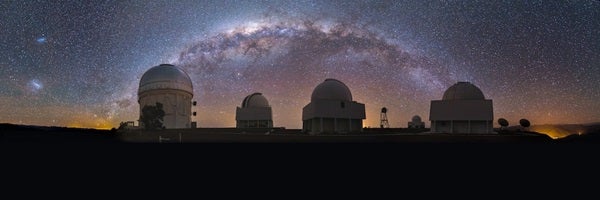

The Milky Way stretches above Cerro Tololo Inter-American Observatory, where the author worked for eight years studying the Large Magellanic Cloud and the Small Magellanic Cloud.

Anja von der Linden
I first saw the Magellanic Clouds with my own eyes when I arrived at the Cerro Tololo Inter-American Observatory (CTIO) as a postdoctoral researcher in 1998. The Large and Small Magellanic Clouds (LMC and SMC) — a pair of dwarf galaxy companions to the Milky Way — had, of course, been observed by countless people before. But it still felt surreal to marvel at them while standing in a dark Chilean desert.

The clouds are part of the culture and lore of many groups of Indigenous peoples in South America, Australia, and southern Africa, where they were named to represent things like the feathers of rheas, a South American relative of the ostrich; the tracks of celestial animals (Setlhako); a pair of cranes (Prolggi); and an old couple sitting by a campfire (Jukara). Polynesian and European sailors also used the Magellanic Clouds as celestial guides, and Europeans later named them to recognize Ferdinand Magellan’s 16th-century circumnavigation of the globe.

ASYTG1120_02a
This stunning ground-based image of the LMC reveals the largest star-forming region in our Local Group of galaxies: the Tarantula Nebula, also known as 30 Doradus (the bright red patch slightly left of center).
Eckhard Slawik
But what made seeing the LMC and SMC special to me was that I had spent the previous three years working with data on the clouds, collected by the Hubble Space Telescope. This served as the basis of my Ph.D. thesis, which focused on the star formation history and the oldest star clusters in the LMC. Yet I had never seen the clouds in person.

My Ph.D. adviser at the University of Washington, astronomer Paul Hodge, who sadly passed away late last year, had taken a boat to South Africa and spent weeks at Boyden Observatory to collect his own thesis data on the clouds. But my data had arrived on digital tapes in the mail. Moving to Chile was going to be the start of my own scientific adventure. And my personal encounter with the Magellanic Clouds surely was an unforgettable experience.

ASYTG1120_02b
The SMC is chock-full of obscuring clouds of interstellar dust that block visible light. But the European Southern Observatory’s Visible and Infrared Survey Telescope for Astronomy, equipped with infrared capabilities, allows astronomers to peer through the dust, revealing myriad stars.
ESO/VISTA VMC

The Magellanic Clouds

Besides being spectacular nighttime objects, the Magellanic Clouds are popular targets for professional astronomers. In fact, they’ve been featured in more than 15,000 research papers, a total to which my thesis added two. There are many reasons for their popularity, including their proximity. They are as nearby as galaxies get, roughly 160,000 light-years for the LMC and some 200,000 light-years for the SMC. This means they are close enough to be studied in detail, yet far enough away that their stars can be approximated as being at uniform distances — unlike those of the Milky Way, where it can be difficult to see the forest for the trees.

The clouds also have a number of notable features, such as the LMC’s Tarantula Nebula, usually referred to as 30 Doradus, which is the largest star-forming region in our Local Group of galaxies. Northern Hemisphere astronomers are generally more familiar with the Orion Nebula (M42), a nursery for massive stars in our own galaxy. But, if placed at the distance of the Orion Nebula, 30 Doradus would span across one-fifth the sky, even casting shadows at night! At the center of 30 Doradus is a dense, massive cluster of stars called R136, which, with an age less than about 2 million years, houses stars so young that even the most massive members have yet to finish their short lives.

ASYTG1120_03a
The Tarantula Nebula (30 Doradus), located in the LMC, is the most luminous known starburst region in the Local Group of galaxies.
Damian Peach
The stars just outside R136 but still within 30 Doradus formed a few million years earlier, giving them more time to evolve. The light from one of these stars, caught in the act of ending its brief career by exploding as a supernova, famously first reached Earth in 1987. (At that point, I was in high school and more interested in electric guitars than astronomy.) Oscar Duhalde, a telescope operator at Las Campanas Observatory, discovered the unfamiliar “new” LMC star when he stepped outside to gaze at the skies. The event, named SN 1987A, kicked off a frenzy of observations and renewed focus on the study of supernova explosions, particularly how they can be used to measure distances. This culminated in the 1998 discovery of dark energy by two supernova survey teams.

My journey to the clouds

Because massive stars evolve quickly and with high complexity, they challenge our ability to model and understand the physical processes that occur within them. Phil Massey is one of the prominent astronomers who have spent their careers studying them. In 2001, he was scheduled to observe the LMC’s red supergiants, which evolved from stars with masses between about 10 and 25 times the mass of the Sun, but his travel plans were interrupted by the tragedy of September 11.

I was both the local instrument scientist for the spectrograph Massey was scheduled to use and had overlapping scientific interests, so he invited me to join the project if I would collect the data. The Blanco 4-meter telescope’s Hydra-CTIO spectrograph was a finicky instrument, but it had great capabilities. It could collect light from more than 100 objects at a time using optical fibers mounted to small magnetic buttons that were precisely placed on a metal plate by a high-speed robotic arm.

ASYTG1120_03b
The Milky Way’s Orion Nebula, seen in this composite image captured by the Hubble Space Telescope, is the closest massive star-forming region to Earth.
NASA, ESA, M. Robberto (Space Telescope Science Institute/ESA) and the Hubble Space Telescope Orion Treasury Project Team
When it worked smoothly, watching it go was pure joy. The spectra, which chart an object’s light across a range of energies, rolled in by the dozens. But when it misbehaved, it was misery, forcing trips to the Cassegrain cage where it was mounted to the telescope to disentangle a rat’s nest of crossed fibers, leading to hours of lost time. Luckily, Massey’s run was scheduled right after two nights of work aimed at fixing Hydra’s technical problems. The observing run was nearly flawless, yielding hundreds of spectra of LMC red supergiants.

From those and other spectra, Massey, along with astronomer Emily Levesque of the University of Washington, developed techniques to measure the temperatures of red supergiants, resulting in a revised temperature scale that resolved a previous disagreement with theoretical stellar models. They also identified several stars with radii of about 1,500 times that of the Sun, making them some of the largest stars known.

The pair also recently applied these techniques to observations of the red supergiant Betelgeuse, demonstrating that the star’s temperature had changed little even while it famously dimmed by more than a magnitude. They concluded that the dimming was caused by an episodic release of dust grains from the star’s atmosphere.

My own interest in red supergiants lay in using them as probes of the LMC’s gravitational structure. The spectra of the stars allowed us to measure their velocities along the line of sight. The faster the supergiants were moving, the more Doppler shifted their spectra would be. To determine their speeds, I would digitally slide each star’s spectrum over a reference spectrum for which I knew the corresponding velocity. I’d then simply measure the shift between the lines.

In the 1970s, Vera Rubin and other astronomers used similar techniques to measure the velocities of the stars orbiting in galaxies such as Andromeda and M33. They found that as they looked farther from the galactic centers, the orbital velocities were too high to be explained by just the gravitational pull from the luminous matter within the galaxies. This discovery of dark matter has since stood the test of time; it is now central to our consensus understanding that galaxies formed through the settling of ordinary matter onto concentrated dark matter halos.

The presence of dark matter means that the stars located in the outskirts of disk-shaped galaxies typically maintain constant high orbital speeds, despite the fact they are far from their galactic cores. In other words, the galaxies’ rotation curves are “flat.” And because the red supergiants located in the outskirts of the LMC fall on a flat rotation curve, they indicate the Milky Way’s largest satellite galaxy also has a significant amount of dark matter.

SN1978

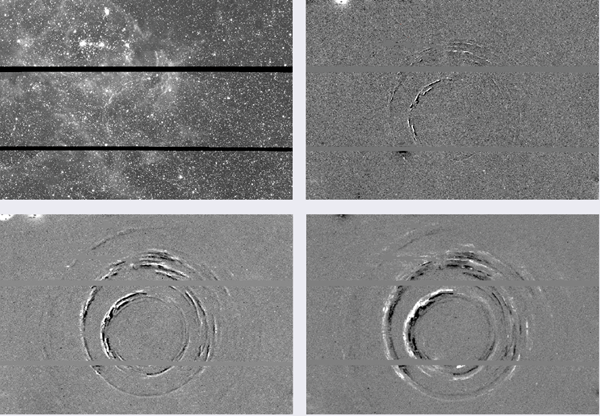

TOP LEFT: The LMC’s ethereal nebulosity and rich star field are apparent in this October 2001 image. TOP RIGHT: Subtracting the first shot from a second image taken in December 2001 highlights changes in brightness, revealing a nested set of circles. White pixels were brighter in the December image, black pixels were fainter, and gray pixels did not change. BOTTOM ROW: Subtracting the original shot from others taken in 2002 (left) and 2004 (right) shows that the circles are rippling outward from the center — the site of SN 1987A — at the speed of light. These echoes are reflected light from the original supernova, observed almost 20 years after the initial blast.
Armin Rest (Harvard)/SuperMACHO/EHS collaboration

Dark matter leads to light echoes

Fifty years after its discovery, we still don’t know what dark matter is made of — but not for lack of trying. In the 1990s, a leading candidate for the composition of dark matter was massive compact halo objects (MACHOs): unseen black holes, neutron stars, or dim brown dwarfs.

Several groups looked for signs of such objects by observing stars in the LMC and hoping to catch the sudden brightening that would occur if a MACHO passed directly in front of it. The foreground MACHO would act as a gravitational lens, with its invisible mass bending the light rays from the background star and amplifying the light we see. (This is technically an example of a microlens, because the distorted shape of the background star would be measured in micro-arcseconds.) The result would be a predictable increase in brightness of the background star as the MACHO approached, followed by a dimming as it moved away; the whole event might last for hours, days, or weeks. Astronomers have found a few microlensing events in the LMC, and thus a potential source of dark matter, but more events are needed before definitive conclusions can be made.

Around 2005, I participated in a project led by physicist Christopher Stubbs of Harvard University and astronomer Armin Rest of the Space Telescope Science Institute, in which we observed fields in the LMC every other night. The goal was to detect brightness changes in stars that would be indicative of microlensing events. Rest developed software that subtracted every microlensed image from a previous template image, carefully tracking the offsets, distortions, and resolution of the pair. He would then identify objects that varied between the two images and trace how their brightnesses evolved over time. The team would visually scour these light curves, as well as postage stamp-sized versions of the difference images, separating true astronomical objects from image artifacts and other junk.

In late 2003, Gajus Miknaitis, then a graduate student at the University of Washington working on the project, found strange objects that he called “moving nebular ghosts.” I calculated that if these were in the LMC, they would have to be moving at the speed of light. He soon looked at the full-size difference images, rather than the postage stamp versions, and noticed that the ghosts formed concentric circles on the sky. At the center of those circles was SN 1987A.

ASYTG1120_08

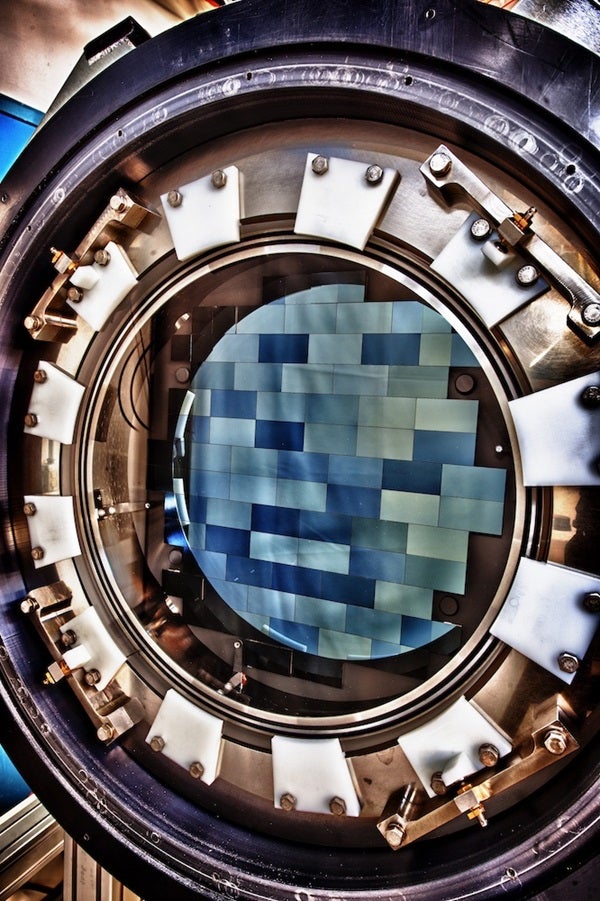

The powerful Dark Energy Camera, with its 2.2° field of view, features 62 charged-coupled devices (seen in blue), allowing it to capture 570-megapixel images.
U.S. Department of Energy
We were seeing light echoes — the original light from the supernova reflected off surrounding dust clouds in the LMC, like sound waves bouncing through the Alps. The echoed light’s pinball path meant it took extra time to make it to Earth, arriving about 15 years after the light that came straight from the supernova. These light echoes form rings tracing the surfaces of surrounding dust clouds that are located the same distances from the supernova. Individual rings with different radii represent reflections from sheets of dust at different distances from the explosion. It turned out that these light echoes had been discovered before by another project, so we had simply rediscovered them.

But as Rest continued to scrutinize the observations, he started finding additional light echoes with arcs that corresponded to locations other than that of SN 1987A. These new echoes were from supernovae that had exploded in the LMC centuries ago, yet we were still seeing the original explosions in delayed form. These light echoes revealed a unique way to study supernovae long after their initial blasts. And while our project ultimately did not find compelling evidence for MACHOs as an important source of dark matter, we still found something totally unexpected — and potentially quite powerful.

Following my work analyzing red supergiants in the LMC, my colleagues and I used the Hydra-CTIO spectrograph to measure velocities of other stars in the LMC. We concentrated on stars much older than the young red supergiants to see how the passage of billions of years would affect their dynamics, and eventually gathered thousands of spectra.

After dissecting the data, we found that most of these older stars had velocities that traced the same flat rotation curve as the red supergiants; however, they also exhibited a bit more random noise, which is expected given they’ve experienced billions of years of orbital evolution. But roughly 5 to 10 percent of the total had velocities that suggest they are orbiting in the opposite direction as the rest — very strange! It would be just as weird if one of the planets in our own solar system orbited the Sun in the wrong direction.

Because we could only measure the velocity of the stars along the line of sight (motion toward or away from us), another possibility was that the stars are orbiting in the same direction as the rest but are highly inclined, traveling well above and below the disk of the LMC. We concluded this was a more likely situation, and recently confirmed it by obtaining full 3D velocities of the stars using data from the Gaia satellite. But that still didn’t explain how this small subset of oddly orbiting stars got on their current track.

Tracing stars back through time

We have known for a long time that the LMC and SMC are a pair of gravitationally interacting galaxies. The most obvious result of this interaction is the Magellanic Stream and its leading arm, which form of a twisted ribbon of neutral hydrogen gas that astronomer David Nidever of Montana State University found extends over more than half the sky.

This ribbon includes streamers that connect to both the LMC and SMC, with two of these filaments converging on 30 Doradus. Viewed from the LMC, the streamers have the same velocities as those of the strangely moving stars we had previously found. Moreover, we measured the abundance of iron in some of our weird stars, finding they had surprisingly little iron compared to other stars in the LMC. However, they were a good match for SMC stars.

Based on the streamers and seemingly migrant stars, we concluded that the LMC had stolen stars from its smaller sibling, the SMC. These displaced stars are now orbiting in front of and behind the LMC’s disk. Plus, the arms connecting the LMC and SMC were apparently ripped out along with these stars and are now falling onto the LMC’s disk, right at the location of 30 Doradus. This scenario would explain why 30 Doradus is forming stars so aggressively. The infalling material provides external pressure on 30 Doradus and keeps the stellar winds and supernovae within from completely blowing away the nearby gas, which would halt further star formation. These ripped-out, massive stars might also be the source of the microlensing events that were seen in the 1990s, which would further rule out MACHOs as a significant source of dark matter scattered throughout the Milky Way.

ASYTG1120_09a

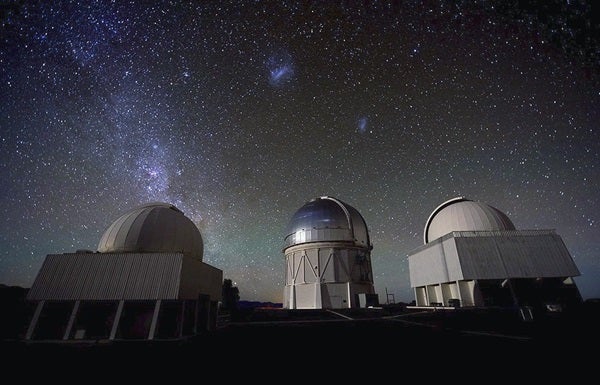

The 4-meter Blanco Telescope (center) and its Dark Energy Camera are an ideal pair for investigating the LMC and SMC.
Fermilab Visual Media Services
With better data and more sophisticated theoretical models, exactly how the Magellanic Clouds have been interacting with each other over the eons is becoming clearer by the year. Astronomer Nitya Kallivayalil of the University of Virginia and others have been hard at work measuring the 3D motions of nearby galaxies, including the Magellanic Clouds. They have determined that the clouds are only loosely bound, if at all, to the Milky Way. Astronomer Gurtina Besla of Steward Observatory has led work to model the motions of the clouds, finding that the LMC and SMC have made several close passes over the past few billion years — and that they likely collided with each other about 300 million years ago.

Such a collision would naturally explain how the LMC stripped stars and gas from the SMC, as well as how the Magellanic Stream formed. Furthermore, it predicts that stars from the clouds should have been flung far from their parent galaxies, meaning they’d now be spread out over large areas of the Southern Hemisphere’s night sky. This is why my current interest, and that of many others, is to map the sky in search of these stars.

ASYTG1120_09b

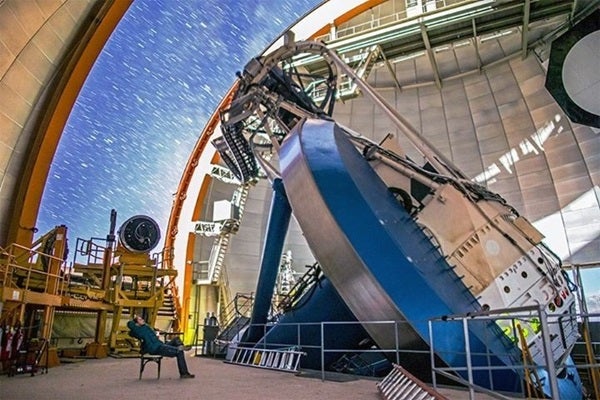

The Victor M. Blanco Telescope in Chile collects observations for the Dark Energy Survey, as a nearby astronomer takes in the spectacular night sky and the goliath scope.
ESO/A. Tudorică

Charting the nearby southern sky

One of the best instruments for mapping large areas of southern sky is the Dark Energy Camera, or DECam, which is also mounted on the Blanco telescope at CTIO. This instrument has a field of view 4.5 times wider than the Full Moon and was built to conduct the Dark Energy Survey (DES), which aims to measure the properties of dark energy, as well as chart the halo of the Milky Way and explore the outskirts of the Magellanic Clouds.

In 2015, two groups — one led by astrophysicist Keith Bechtol of the University of Wisconsin-Madison and the other by Sergey Koposov of Carnegie Mellon University — used the DES data to discover eight new extremely faint, low-mass dwarf galaxies. Some of these galactic specters have locations, distances, and velocities that make them likely satellites of the Magellanic Clouds — in other words, satellites of satellites.

The Survey of the MAgellanic Stellar History, or SMASH, collaboration, led by Nidever, and the DES Collaboration have also found stars from the Magellanic Clouds as far as 20° from the LMC and SMC, showing that they extend much farther than previously thought. Finally, astronomers Vasily Belokurov of the University of Cambridge and Denis Erkal of the University of Surrey have used data from the Gaia satellite to map the clouds’ stars with stunning detail. Their 2018 paper, “Clouds in arms,” shows that the SMC and LMC span roughly 15° and 30°, respectively, and they both have arms that extend far beyond that.

It has been 22 years since I first saw the Magellanic Clouds with my own eyes. Since then, I’ve learned just how closely connected they are to so many astronomical discoveries. But, even more importantly, I’ve realized they still hide many surprises.

When I gaze at them now, I imagine what they might have looked like over their lifetimes: a pair of galaxies, condensed from gas settling onto lumps of dark matter, dancing around each other while simultaneously accelerating toward the Milky Way. As they race to meet our galaxy, they occasionally slam into each other, tossing out great plumes of stars and gas both ahead of and behind them. During their tango, the pair occasionally flares up as colliding gas kicks off bursts of intense star formation. And all the while, a small audience of faint dwarf satellites sits on the periphery.

Some of this picture might be exaggerated by my imagination, but it is also almost certainly missing some fascinating details that I couldn’t yet dream of. I’ve learned that scientific research is like jumping into a canoe on an uncharted river — even with a goal in mind, you often have little idea of what lies ahead, other than almost certain adventure.
