Large Binocular Telescope achieves major optics breakthrough

The First Light Adaptive Optics system delivers an image quality greater than the Hubble Space Telescope.Provided by LBT Corp., Tucson, Arizona
By | Published: June 16, 2010 | Last updated on May 18, 2023

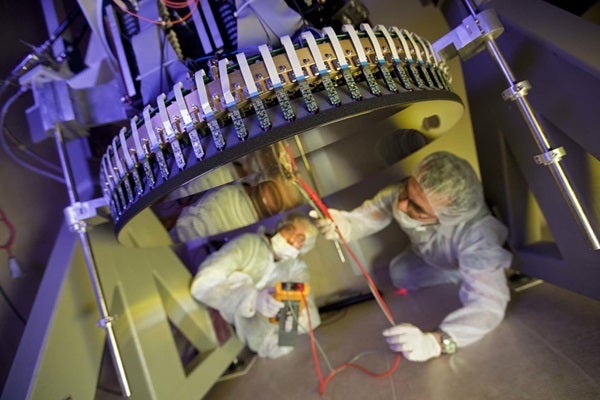

Side view of the Adaptive Optics system during lab testing. The deformable reflecting surface of the concave mirror is visible, along with some of the 672 circuit cards that control the magnetic forces.
R. Cerisola
June 16, 2010
The next generation of adaptive optics has arrived at the Large Binocular Telescope (LBT) in Arizona, providing astronomers with a new level of image sharpness never before seen. Developed in collaboration between Italy’s Arcetri Observatory of the Istituto Nazionale di Astrofisica (INAF) and the University of Arizona’s Steward Observatory, this technology represents a remarkable step forward for astronomy.

Until relatively recently, ground-based telescopes had to live with wavefront distortion caused by Earth’s atmosphere that significantly blurred the images of distant objects — this is why stars appear to twinkle to the human eye. While there have been advancements in adaptive optics technology to correct atmospheric blurring, the LBT’s innovative system takes this concept to a whole new level.

In closed-dome tests beginning May 12 and sky tests every night since May 25, Simone Esposito and his INAF team tested the new device, achieving exceptional results. The LBT’s adaptive optics system, called the First Light Adaptive Optics system (FLAO), immediately outperformed all other comparable systems, delivering an image quality greater than the Hubble Space Telescope, using just one of the LBT’s two 8.4-meter mirrors. When the adaptive optics are in place for both mirrors and their light is combined appropriately, it is expected that the LBT will achieve image sharpness 10 times that of the Hubble.

“This is an incredibly exciting time as this new adaptive optics system allows us to achieve our potential as the world’s most powerful optical telescope,” said Richard Green, director of the LBT. “The successful results show that the next generation of astronomy has arrived while providing a glimpse of the awesome potential the LBT will be capable of for years to come.”

The unit of measure for perfection of image quality is known as the Strehl Ratio — a ratio of 100 percent is equivalent to an absolutely perfect image. Without adaptive optics, the ratio for ground-based telescopes is less than 1 percent. The adaptive optics systems on other major telescopes today improve image quality up to about 30 to 50 percent in the near-infrared wavelengths where the testing was conducted.

In the initial testing phase, the LBT’s adaptive optics system has been able to achieve unprecedented Strehl Ratios of 60 to 80 percent, a nearly two-thirds improvement in image sharpness over other existing systems. The results exceeded all expectations, and the testing team had difficulty believing their findings were so precise.

“The results on the first night were so extraordinary that we thought it might be a fluke, but every night since then the adaptive optics have continued to exceed all expectations. These results were achieved using only one of LBT’s mirrors. Imagine the potential when we have adaptive optics on both of LBT’s giant eyes,” said Simone Esposito.

This outstanding success was achieved through the combination of several innovative technologies. The first is the secondary mirror, which was designed from the start to be a main component of the LBT rather than an additional element as on other telescopes. The concave secondary mirror is 3 feet (0.91 meter) in diameter and only .06 inch (1.6 millimeters) thick. The mirror is so thin and pliable that it can easily be manipulated by actuators pushing on 672 tiny magnets glued to the back of the mirror, a configuration that offers far greater flexibility and accuracy than previous systems on other telescopes. An innovative “pyramid” sensor detects atmospheric distortions and manipulates the mirror in real time to cancel out the blurring, allowing the telescope to literally see as clearly as if there was no atmosphere. Incredibly, the mirror is capable of making adjustments every 1-thousandth of a second with accuracy to better than 10 nanometers — a nanometer is one-millionth the size of a millimeter.
